-25%
Triumph Tiger 800 – Pannier Racks
£153.75 – £217.50
Pannier Racks for Triumph Tiger 800
The Adventure Moto/Outback Motortek X-Frames for the Triumph Tiger 800 are the most universal and functional side pannier frames yet, allowing simple, secure mounting of Rotopax, hard panniers and soft luggage.
New for 2019: We’re now offering standard pannier racks. The difference between our standard pannier racks and the X-Frames is that the standard frames don’t feature RotoPax mounts and tabs welded on all four corners.
Please note: The ‘X-Frame’ corner tabs have recently been updated as shown below. All product images will soon reflect this change.
Ships from UK
Triumph Tiger 800: Compatibility check
Multiple Triumph Tiger 800 Names: Check here
Check the RotoPax Bracket and Tool Box as valuable assets for your pannier racks.
Description
Detailed list of compatible hard and soft pannier racks:
Standard Pannier Racks
Designed and manufactured by Outback Motortek. Hoop’s external dimensions are 350mm (W) x 250 (H) made of 18mm diameter tubing.
Compatible with:
- Mosko Moto Backcountry 35 >> Shop
- Mosko Moto Scout 25L Pannier kit (V2.0) >> Shop
- Kriega OS-22 and OS-32 with OS-PLATFORM
- ADVWORX / TREKK – 30L/20L
- Turkana Gear HippoHips Soft Panniers
- Giant Loop MotoTrekk and RTW
- Wolfman
- Enduristan Monsoon 3 and EVO
- LoneRider MotoBags
X-Frame
Designed by Adventure Moto Australia and manufactured by Outback Motortek.
The new X-Frames are the most universal and functional side pannier frames yet, allowing simple, secure mounting of Rotopax, hard panniers and soft luggage.
Matte black powder-coated mild steel frames with an alloy X-bracket with multiple Rotopax mounting positions for custom weight distribution, as well as multiple tie-down points.
You can even remove the X-Bracket from your frames when running Hard Luggage to reduce the frame weight.
Compatible with:
- Kriega OS-22 and OS-32 without OS-PLATFORM
- ADVWORX / TREKK – 30L/20L
- Turkana Gear HippoHips Soft Panniers
- Giant Loop MotoTrekk and RTW
- Wolfman
- Enduristan Monsoon 3
Compatibility:
Pannier Racks: Compatible with Triumph Tiger 800. Same pannier racks for all sub-models.
Additional information
| Weight | 4.6 kg |
|---|---|
| Dimensions | 60 × 45 × 30 cm |
| Brand |
Outback Motortek |
| Colour |
Matte Black |
| Condition |
New |
| Material |
Mild Steel |
| Version |
Standard ,X-Frame |
| Year |
2010 – 2019 |

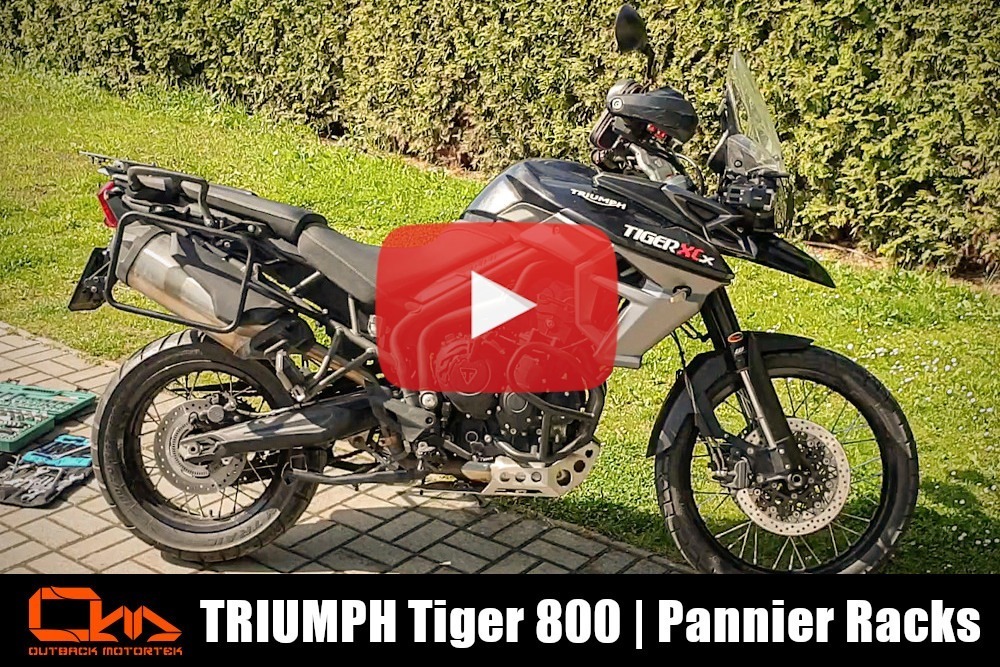

Installation Video
